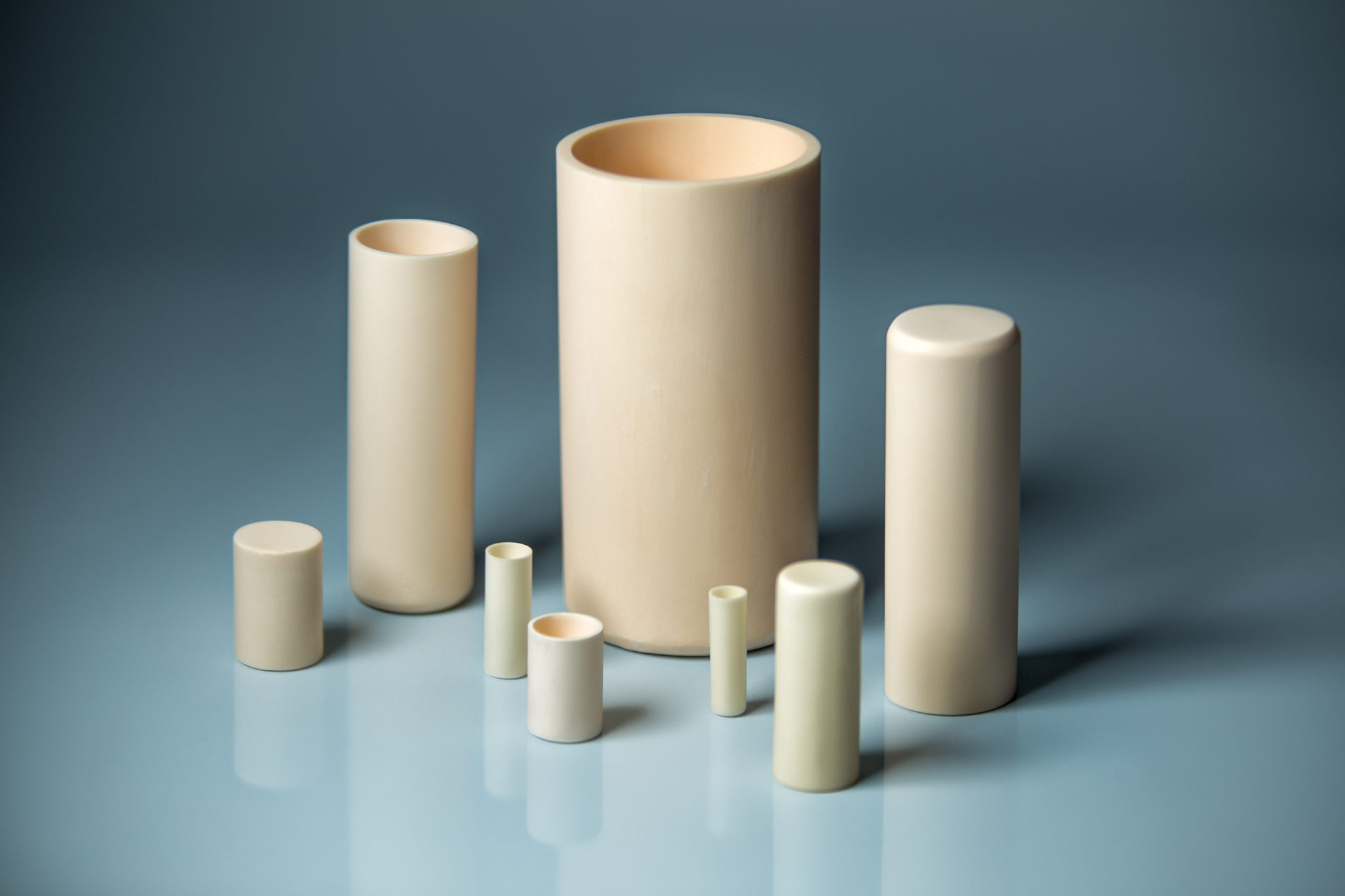

Alumina Cylindrical Crucible
| Item # CYC | CAPACITY (ML) | DIAMETER (mm) | HEIGHT(mm) |
|---|---|---|---|
| CYC002 | 2 | 13 | 25 |
| CYC005-1 | 5 | 18 | 26 |
| CYC005-2 | 5 | 19 | 26 |
| CYC006 | 6 | 24 | 19 |
| CYC010-1 | 10 | 22 | 33 |
| CYC010-2 | 10 | 25 | 25 |
| CYC020 | 20 | 28 | 44 |
| CYC025 | 25 | 34 | 38 |
| CYC040 | 40 | 25 | 100 |
| CYC050-1 | 50 | 35 | 64 |
| CYC050-2 | 50 | 40 | 42 |
| CYC060 | 60 | 25 | 152 |
| CYC100-1 | 100 | 39 | 91 |
| CYC100-2 | 100 | 50 | 64 |
| CYC150 | 150 | 55 | 78 |
| CYC170 | 170 | 40 | 165 |
| CYC180 | 180 | 54 | 191 |
| CYC250-1 | 250 | 59 | 104 |
| CYC250-2 | 250 | 60 | 100 |
| CYC500-1 | 500 | 69 | 148 |
| CYC500-2 | 500 | 75 | 150 |
| CYC750-1 | 750 | 83 | 160 |
| CYC750-2 | 750 | 90 | 150 |
| CYC1000-1 | 1000 | 93 | 167 |
| CYC1000-2 | 1000 | 120 | 120 |
| CYC1500-1 | 1500 | 105 | 194 |
| CYC1500-2 | 1500 | 120 | 160 |
| CYC2000 | 2000 | 140 | 155 |
| CYC2400 | 2400 | 127 | 228 |
| CYC2500 | 2500 | 150 | 165 |
| CYC3000 | 3000 | 150 | 200 |
| CYC4750 | 4750 | 178 | 228 |
| Item # CYC | CAPACITY (ML) | DIAMETER (mm) | HEIGHT(mm) |
